Material (please specify when ordering):

  • BR – Brass
  • PC – Phosphor Copper

Example: 1000-75BR or 1000-75PC

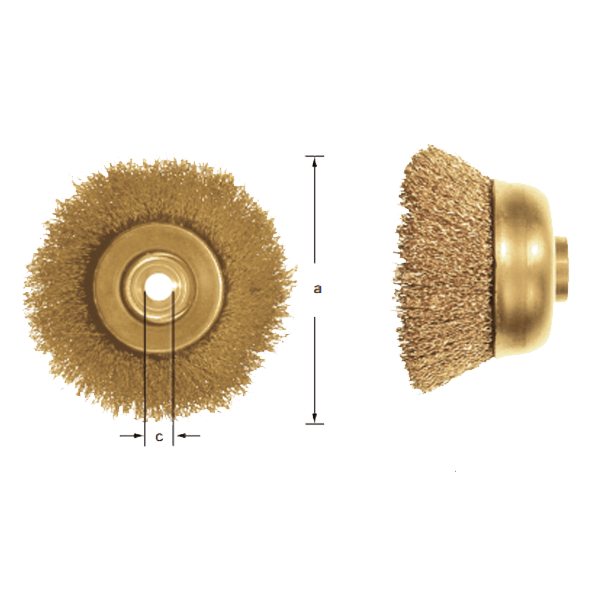

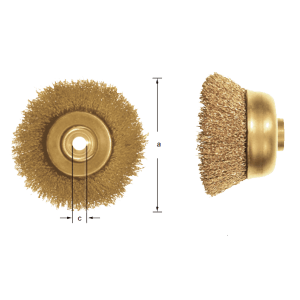

Type (ID): 1000
Body:

No. a
mm
c Weight icon
kg
a
inch
Wt.
lbs.
1000-75 75 M14 0.29 3 0.66
1000-100 100 M14 0.42 4 0.93
1000-150 150 M14 0.57 6 1.26
1000U-3 75 5/8 0.29 3 0.66
1000U-4 100 5/8 0.52 4 1.14
1000U-6 150 5/8 0.93 6 2.05
