Material (please specify when ordering):

  • A = Aluminum Bronze (AlBz)
  • B = Copper Beryllium (BeCu)

Example: 318R-14A or 318R-14B

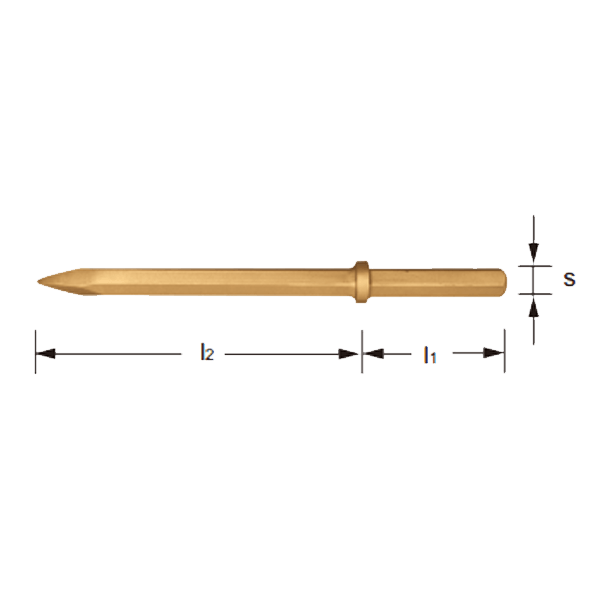

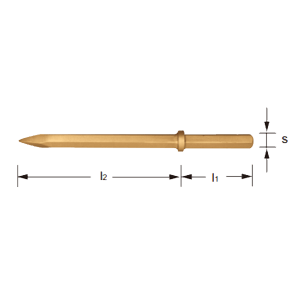

Type (ID): 318R
Body:

No. s
mm
l1
mm
l2
mm
Weight icon
kg
s
inch
l1
inch
l2
inch
Wt.
lbs.
318R-14 28.7 153 332 2.74 11/8 6 13 6.04
320R-14 32.0 153 332 3.18 11/4 6 13 7.01
